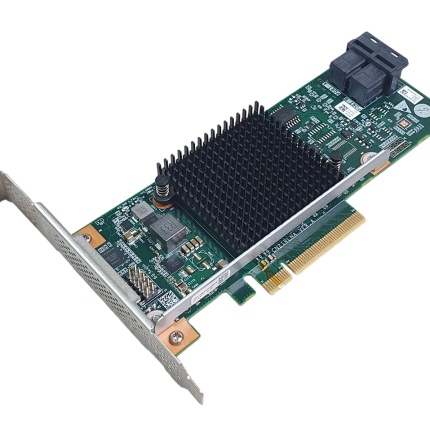

P150-M RAID Controller: PCIe 3.0 x8, 4x SAS/SATA ports, 256MB cache, RAID

03024JNA SP150-M Raid Card CN21RLNA

Product Parameters:

• Model Number: SP150-M (03024JNA / CN21RLNA)
• Product Type: PCIe RAID Controller Card
• Compatibility: Enterprise Servers (Dell/HP/Huawei) and Storage Systems
• RAID Support: RAID 0, 1, 5, 10, JBOD
• Interface: PCIe 3.0 x8 (Backward-Compatible with PCIe 2.0)
• Cache Memory: 256MB DDR3 ECC (Battery-Free Protection)
• Data Transfer Rate: Up to 6 Gb/s per Port (SAS/SATA III)
• Port Configuration: 4 Internal SAS/SATA Ports
• Stripe Size: Configurable (64KB-1MB)
• OS Compatibility: Windows Server 2012-2019, Linux (RHEL/CentOS), VMware ESXi 6.0+
• Certifications: CE, FCC, RoHS
• Use Case: Data centers, NAS/SAN expansion, database servers
