Server
DELL PowerEdge Mainboard T320 7MYHN W7H8C 7C9XP RCGCR 0W7H8C DDR3 Motherboard Fully Tested
Device Type : Dell PowerEdge T320 Tower Server Motherboard (ONLY)
Processor Type : E2407 V2 – 4 CORE(SUPPORT)
Memory : DDR3 – 1333 MEMORY SUPPORT
No. of Processors : 1 (WITHOUT CPU)
HP Proliant DL380 G9 (RACK SERVER)- MOTHER BOARD
Device Type : HP ProLiant DL380 G9 Server Motherboard
Processor Type : 2 x Intel Xeon E5-2620 V3 2.40GHz 6 Core
Memory Slots : 24 DIMM’s
Compatible With : HP ProLiant DL360 G9, HP ProLiant DL380P G9
No. of Processors : 2 (WITHOUT CPU)
Memory Supported : 3TB (WITHOUT RAM)
HP Proliant DL380 G9 RACK SERVER
Additional Information
MODEL : HP Proliant DL380 G9 Rack Server
FORM FACTOR : 12 x 3.5″ (LFF) Large Form Factor
PROCESSOR : 2 x Intel Xeon E5-2620 V3 2.40GHz 6 Core
MEMORY : 16GB x 1866 Memory
HDD : 300 gb 10k sas x 3 pcs
RAID CONTROLLER : HP Smart Array SAS Raid Controller
NETWORKING : HP Quad Port 1GB Ethernet Network Card
POWER SUPPLY : 2pcs x 500W Power Supplies
HP 1200W Platinum HE Power Supply
Specifications:
Category :Proliant Option
Sub-Category :Proliant Power Supply
Generation :1200 Watt
Part Number :570451-101
Products ID :494972
Manufacturer :HP
Product Type :Power Supply Kit
Input Voltage Range :100 V AC to 240 V AC
Output Power :1.20 kW
Frequency :50/60 Hz
Form Factor :Plug-in Module
HP 1200W Hot Plug Power Supply For Proliant DL380 DL580 DL785 G5 P/NO: 438202-002/440785-001/441830-001
specification :
1200W Hot Plug Power Supply for Proliant DL580 G5
Input : 100V ~ 9.4A, 110-240V AC
Output : 1200W Max
Switching : Yes
Redundant : Yes
Hot Plug : Yes
INTEL 750W 80PLUS Platinum Power Supply
specification
Manufacturer : INTEL
Part Number : E98791-009
Description : Intel DPS-750XB A 750W Switching Power Supply
Efficiency : 90 %
Voltage Range : 100 V AC @ 9.2 A – 240 V AC @ 4.4 A
Max.Output Power : 750 Watts
Input Voltage : 100 V AC – 240 V AC

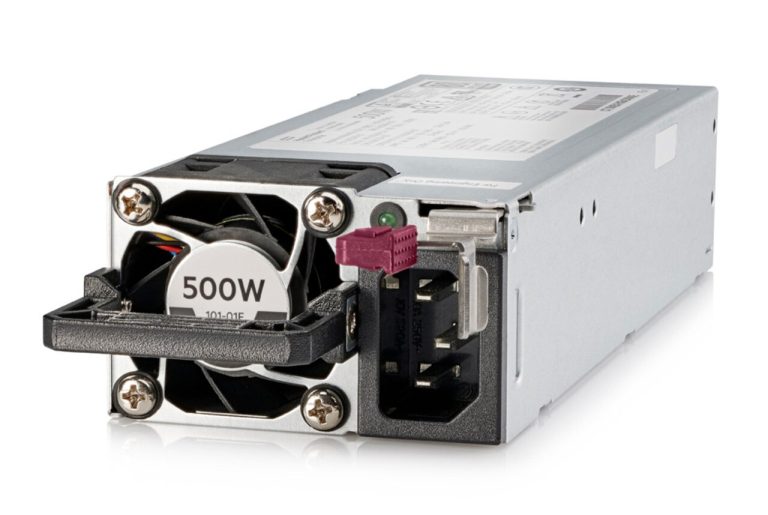

HPE G10 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
Specifications:
Product Type : Power supply – hot-plug / redundant
Form Factor : Plug-in module
Specification Compliance : Flex Slot
Power Supply Compatibility: PC/Server
Power Provided : 500 watt
Power Capacity (VA) : 563 volt ampere per kilogram
Voltage Required : AC 100-240 volt
Frequency Required : 50 – 60 hertz
Input Connector Type : Power IEC 60320 C14
Efficiency : 94%
80 PLUS Certification : 80 PLUS Platinum
Compliant Standards : BSMI, CCC, CISPR Class A, C-Tick, cUL, KCC, Low halogen, TUV, UL, WEEE
Width : 2.7 inch
Depth : 8.9 inch
Height : 1.6 inch
Weight : 32.1 ounce
Min Operating Temperature : 41 degree Fahrenheit
Max Operating Temperature : 131 degree Fahrenheit
Humidity Range Operating : 5 – 95% (non-condensing)
HP 30-10047-01 D S25 Alpha server 500W Power Supply H7911-AA, 3X-H7911-AA
Product Specification :
anufacturer : HP
Product Type : Power Supply
Input Power Range : 100-127V / 200-240V
Line Frequency : 50-60Hz
Hot-pluggable : Yes
Wattage : 500W
Input Current : 10 A
Input Frequency : 50-60 Hz
Input Voltage : 100-240 V
Maximum Power : 500 Watts
Output Voltage : +5.1V @ 45.0A
+3.3V @ 65.0A
+12.0V @ 7.5A
-12.0V @ 1.0A
+5.0VAux @ 2.5A
ASTEC AA22780 RS5 / 3001845-01 400W P/Supply for SUN NETRA 240
specification :
Model : AA22780 RS5
Type : Power Supply Unit
Wattage : 400 W
Brand : ASTEC

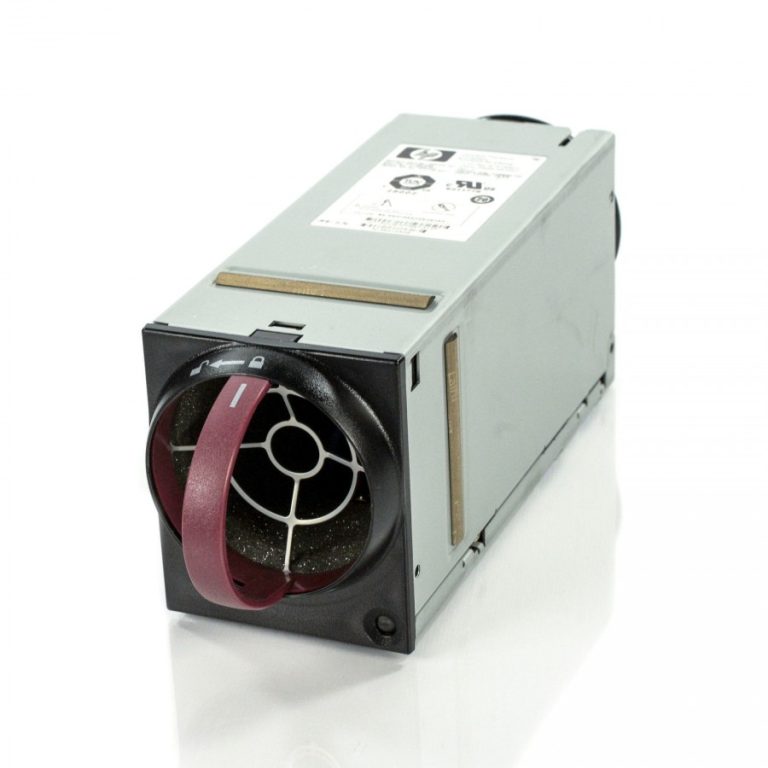

HP PROLIANT DL580 G5 / 600 MODULAR DISK SYSTEM C7000 POWER SUPPLY
Part Numbers 413996-001, 412140-B21, 451785-001, 451785-002, 486206-001
Brand :HP
Model :412140-B21
To Fit :HP BladeCenter C7000, MDS600, SSA70 PROLIANT DL580 G5 / 600 MODULAR DISK SYSTEM
Type :Fan
Input Voltage : 12VDC 16.5A.
Compatible Enclosures : C7000, MDS600, SSA70
Chicony/Cisco 650W Server Power Supply R2X0-PSU2-650W-SB V01
specification :
CISCO R2X0-PSU2-650W-SB V01 650W CPB09-031A :
type : HOT SWAP POWER SUPPLY
manufacturer : CISCO / CHICONY
chicony model : CPB09-031A
p/n : R2X0-PSU2-650W-SB V01
power : 650 WATT
certificate : 80 PLUS GOLD
cooling : 1x FAN
HPE 656594-001 Ethernet 10Gb 2-Port 530T Adapter
ITEMS : NEW
HPE – Ethernet 10gb 2-port 530t ADAPTER(656594-001).
Key Features :
Device Type : Network Adapter
Form Factor : Plug-in Card
Interface (bus) Type : Pci Express 2.0 X8
Ports : 10gb Ethernet
Cabling Type : Ethernet 1000base-t, Ethernet 10gbase-t
Data Link Protocol : Gigabit Lan, 10 Gigabit Lan
Processor : Bcm57810s – Broadcom
Ram : 256 Mb
