| Specifications |
|---|

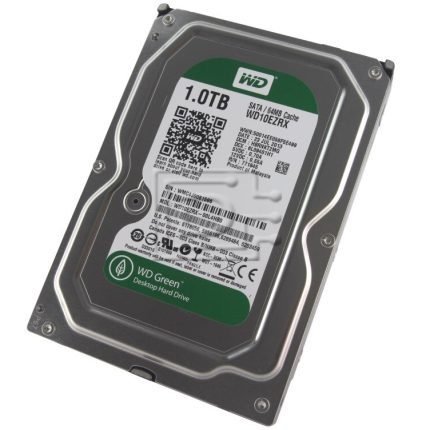

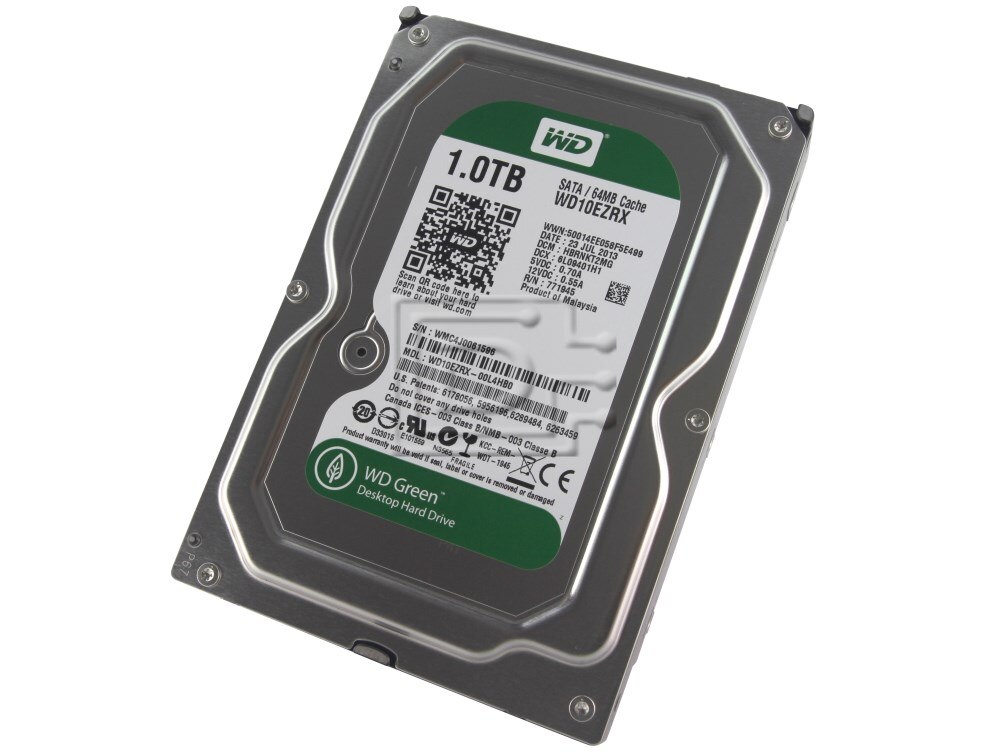

| Model Number | WD10EZRX |
| Formatted Capacity | 1TB/1000GB |
| Interface (SATA) | 6 Gb/s |
| Advanced Format (AF) | Yes |
| Form Factor | 3.5-Inch |
| RoHS Compliant | Yes |
| Performance |
|---|
| Data Transfer Rate (MAX) Buffer to Host | 6 Gb/s |
| Host To/From Drive (Sustained) | 150 MB/s |
| Cache (MB) | 64 |
| Rotational Speed (RPM) | IntelliPower |
| Reliability/Data Integrity |
|---|
| Load/Unload Cycles | 300,000 |
| Non-Recoverable Read Errors Per Bits Read | <1 in 10 |
| Power Management |
|---|
| 12VDC (A, Max) | 1.2 |
| Average Read/Write Power (W) | 3.3 |
| Average Idle Power (W) | 2.5 |
| Average Standby and Sleep Power (W) | 0.4 |
| Environmental Specifications |
|---|
| Operating Temperature °C | 0 to 60 |
| Non-Operating Temperature °C | -40 to 70 |
| Shock (Gs) Operating(2 ms, read/write) | 65 |
| Shock (Gs) Operating(2 ms, read) | 30 |
| Shock (Gs) Non-Operating (2 ms) | 350 |
| Acoustic Idle Mode (dBA) | 21 |
| Acoustiv Seek Mode (dBA) (Average) | 24 |
| Physical Dimensions |
|---|
| Height (in/mm) | 1.028/26.1 |
| Width (in/mm) | 5.78/147 |
| Depth (in/mm) | 4/101.6 |
| Weight (lb/g) | 990/0.45 |
